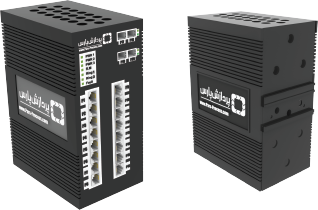

Fiber Optic Ring Switch NS-20G-F4
Introducing:
In industrial networks, feature redundancy, network cable connection and easy expansion capabilities, the benefits are important, Ring network is capable of all the above items. The system includes a complete integrated system for connecting a 4-port Gigabit LAN Gigabit Single Mode allows you to connect up to a distance of 100 km and up to 16 Gigabit or 100 MB in different models and in addition to the above facilities navigator interior and various security protocols and powerful network monitoring and troubleshooting internally.
The system, protocol switching and Layer 3 protocols and features such as Ring and Internal Firewall Port lock, Bus lock and safety to network and work in temperature -30° to +70° supports.
Features & Benefits:
General Specifications:
- Design and construction for industrial applications
- For Din rail connection
- Redundant Ring with less than 10 milliseconds when connecting the system to a distance of 100 km per switch
- Higher than 12Gbps switch fabric and delay 1us
- Support for Single Mode Fiber
- Performance Layer 3 network to transfer information and data
- Redundancy Ring network support and various models for higher security
- Programmable Delay Recovery Time, Ring of network sizes and different structures
- Designed to be compatible with industrial protocols and monitoring to see the size, extent and potential errors in the network
- Firewall supports programmable safety network
- The ability to define local DHCP and Proxy lower volume
- Information on networks with large Scale
- Support of SNMP versions 1, 2, 3
- It has an internal Watchdog to automatically reset
- Vlan and Q tagging Support
- It has an internal Watchdog to automatically reset
- Vlan and Q tagging Support
- The ability to define virtual switch
- Designed without a fan
- Three separate power supply connection for more safety
- Operating temperature -40 to +70 ° C
- Programmable speed and mode of each port individually
-
Connectivity:
- Up to 4 SFP ports for fiber-optic communication via Ring or Star
- Equipped with a built-in six-channel radio 5 GHz for 6x6 Mimo wireless network to cover local or remote point-to-point
- Inside SIM card if no 4G connectivity via Fiber optic connectivity and built-in Wireless
-
Has the following models:
- 16 GB ports
- 8 GB port
- 8 GB + 8-port port 100MBPS
- 16 Port 100MBPS
- 8-Port 100MBPS

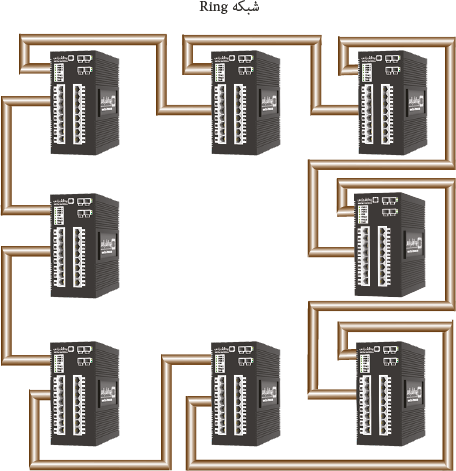

Ring Network:
In industrial networks, feature redundancy, network cable connection and easy expansion capabilities, the benefits are important, Ring network is capable of all the above items.
Advantages :
- Exponentially reduces the need for cabling.
- The redundancy
- Change a switch or expand the network, without the need for overall system glitch
- Ease of connecting devices to the network via the nearest Node
- Regular network
- Usability over long distances
The physical dimensions of the device:
